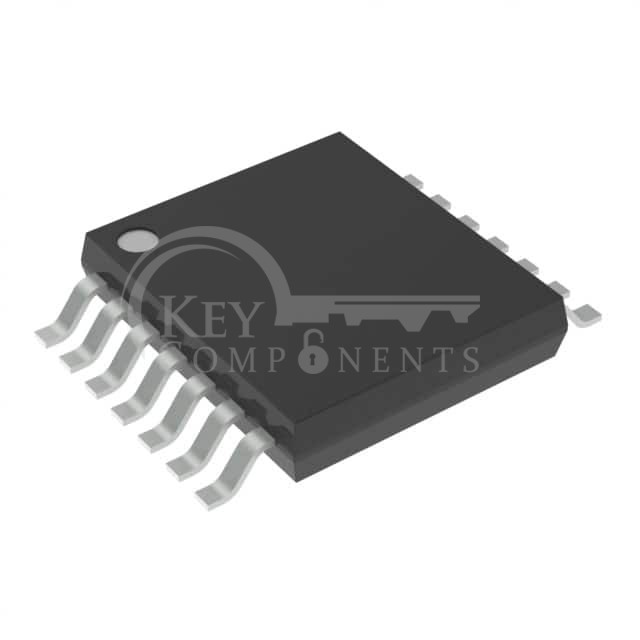

RT7235GCP
| Manufacturer Part | RT7235GCP |
|---|---|
| Manufacturer | Richtek USA Inc. |
| Description | IC REG BUCK ADJ 5A 14TSSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Function: | Step-Down |
| Output Configuration: | Positive |
| Topology: | Buck |
| Output Type: | Adjustable |
| Number of Outputs: | 1 |
| Voltage - Input (Min): | 4.5V |
| Voltage - Input (Max): | 18V |
| Voltage - Output (Min/Fixed): | 0.765V |
| Voltage - Output (Max): | 8V |
| Current - Output: | 5A |
| Frequency - Switching: | 650kHz |
| Synchronous Rectifier: | Yes |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package: | 14-TSSOP-EP |
