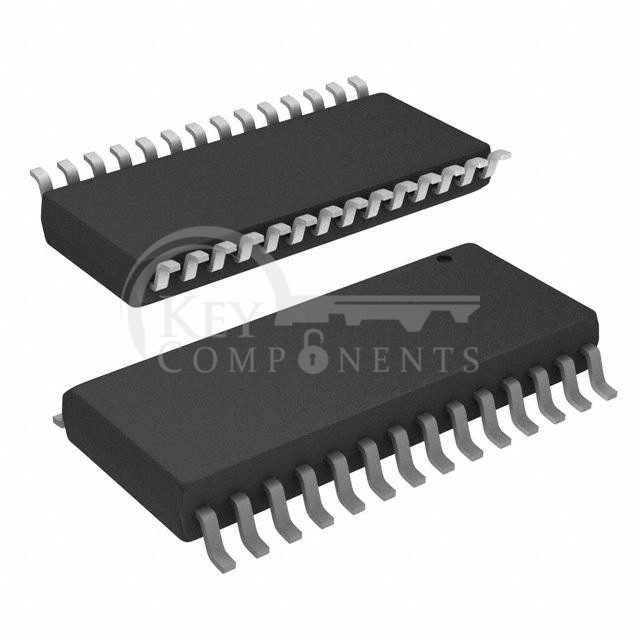

IR2135STRPBF
| Manufacturer Part | IR2135STRPBF |
|---|---|
| Manufacturer | International Rectifier |
| Description | IR2135S - GATE DRIVER |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Driven Configuration: | Half-Bridge |
| Channel Type: | 3-Phase |
| Number of Drivers: | 6 |
| Gate Type: | IGBT, N-Channel MOSFET |
| Voltage - Supply: | 10V ~ 20V |
| Logic Voltage - VIL, VIH: | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink): | 250mA, 500mA |
| Input Type: | Inverting |
| High Side Voltage - Max (Bootstrap): | 600 V |
| Rise / Fall Time (Typ): | 90ns, 40ns |
| Operating Temperature: | 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | 28-SOIC |
