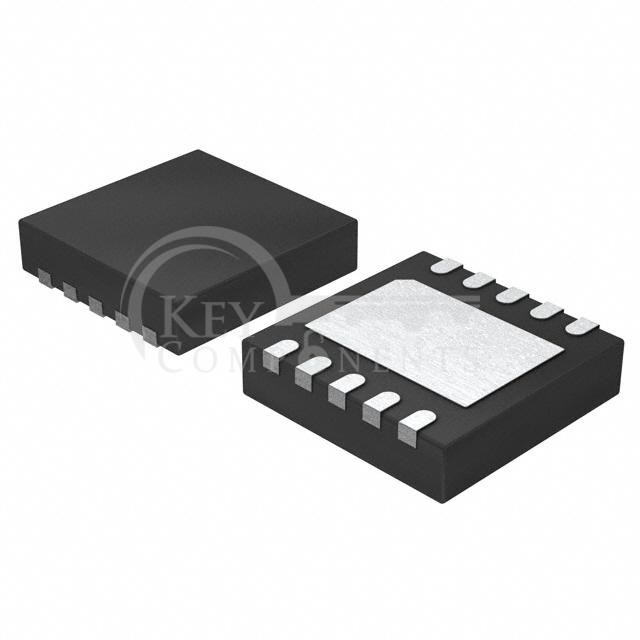

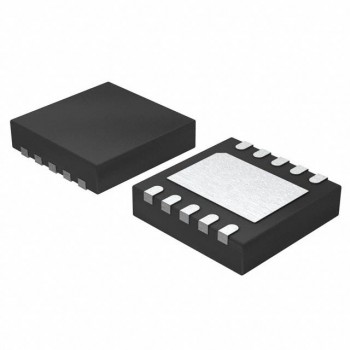

ADP7156ACPZ-1.8-R7
| Manufacturer Part | ADP7156ACPZ-1.8-R7 |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC REG LINEAR 1.8V 1.2A 10LFCSP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Configuration: | Positive |
| Output Type: | Fixed |
| Number of Regulators: | 1 |
| Voltage - Input (Max): | 5.5V |
| Voltage - Output (Min/Fixed): | 1.8V |
| Voltage - Output (Max): | - |
| Voltage Dropout (Max): | - |
| Current - Output: | 1.2A |
| Current - Quiescent (Iq): | 8 mA |
| Current - Supply (Max): | 12 mA |
| PSRR: | 80dB ~ 60dB (1kHz ~ 1MHz) |
| Control Features: | Enable |
| Protection Features: | Over Current, Over Temperature |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 10-VFDFN Exposed Pad, CSP |
| Supplier Device Package: | 10-LFCSP-WD (3x3) |
