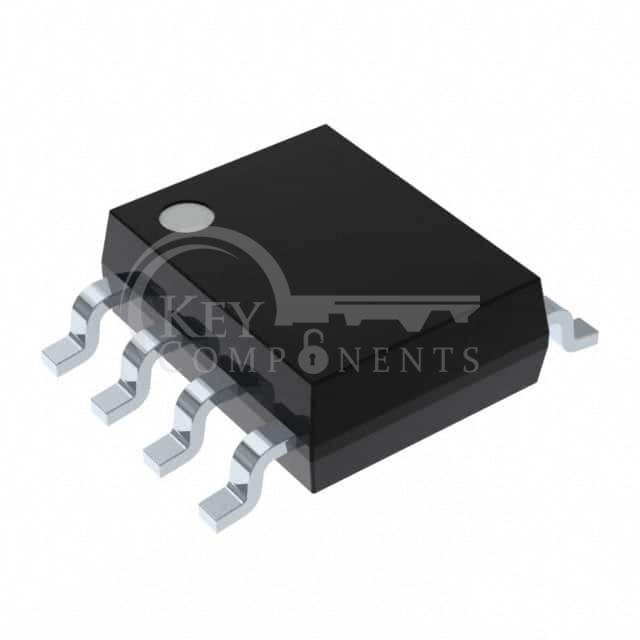

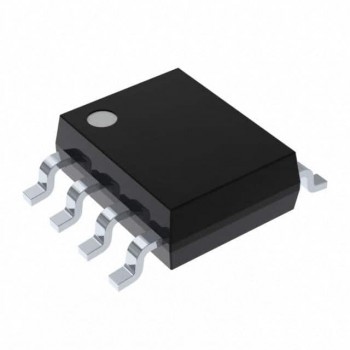

DS1100Z-75

DS1100Z-75

Manufacturer Part DS1100Z-75
Manufacturer Analog Devices Inc./Maxim Integrated
Description IC DELAY LINE 5TAP 75NS 8SOIC
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Number of Taps/Steps:5
Function:Nonprogrammable
Delay to 1st Tap:15ns
Tap Increment:15 ns
Available Total Delays:75ns
Number of Independent Delays:1
Voltage - Supply:4.75V ~ 5.25V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SOIC
